Checking Fixture For IP Assembly Parts

Checking Fixture For IP Assembly Parts

Checking Fixture for stamping,CMM holding fixture,SPC checking fixture,stamping parts checking fixture,assembly checking fixture If you are interesting in our checking fixtures,please contact robin@sunyuu.com

Checking Fixtures, CMM Holding Fixtures and Gauges


Checking fixtures are designed for accuracy, repeatability and reliability with a strong focus on operator ergonomics.


We offer assembly and checking fixtures for vehicle frames and body sub-assemblies, single component fixtures for all metal and plastic parts, flush and feeler gap checking, mating part simulation and three axis true position probing.


Fixtures and gauges available for a large variety of plastic and metal parts such as: Instrument panels, Interior trim,Seating, HVAC, Chassis components, Body panels, Door seals, and trim.


We can produce the different types of checking fixtures:

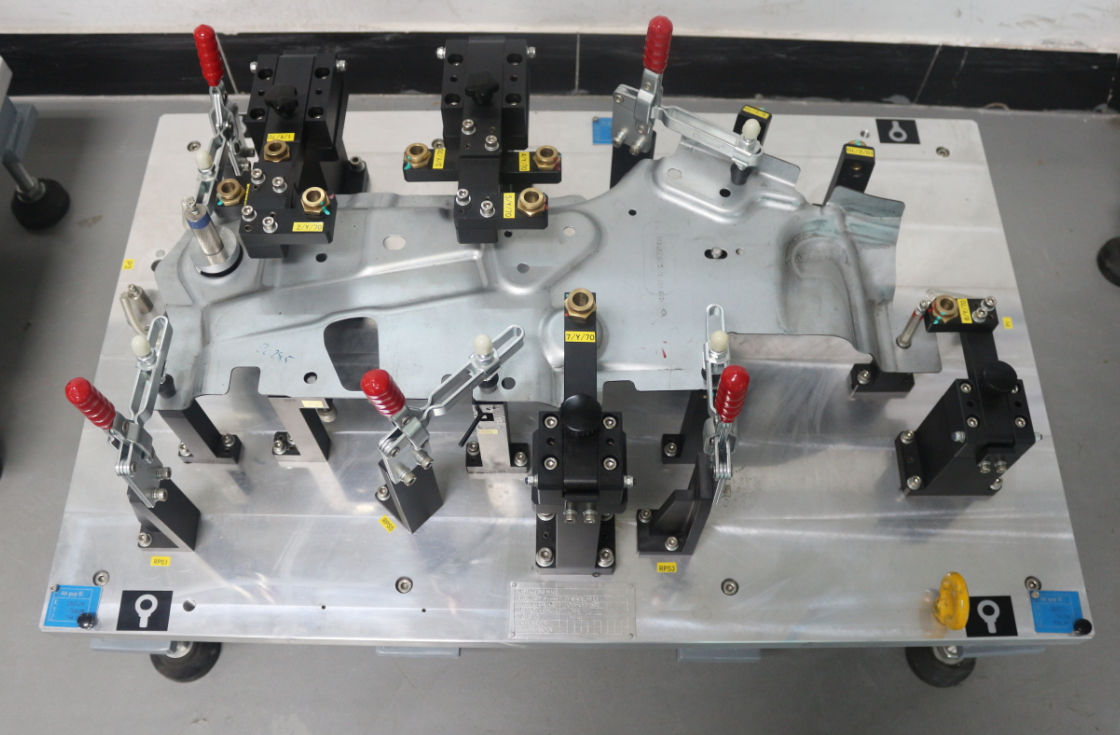

· CMM fixtures : composed of centring elements and fixations enabling to position the part in space and to control it by CMM machine.



 Checking fixtures with Go/No Go or digital measuring instrument controls: composed of centring elements and fixations of the parts, with manual controls by Go/No Go pins or measuring devices providing a digital value compared with the nominal value – dial indicator,digital probe, measuring ruler, torque wrench, inclinometer, etc.)

· Cubings:representation of the complete environment of the part or of the assembly to be controlled, exact simulation of the components surrounding the part. This type of fixture also includes centring elements and fixations, and can also have controls by Go/No Go and measuring instruments as on any type of checking fixture.

· Automated checking fixtures: composed of centring elements and fixations of the part, with automated controls to get a very short cycle time enabling to control 100% of the production.



If you are going to check the quotation of IP assembly parts checking fixture made in China from one of the famous automotive IP plastic

parts checking fixture manufacturers and suppliers in China, It is always at your service.


1. Design and manufacture checking fixture for IP assembly parts

2. All Design 100% according to customer requirement.

3. Supply OEM Service

4. Material:steel/Aluminium/Resin

5. ISO 9001:2015 Certificate

6. High quality and competitive price.

7. Design 7 days,manufacturing 30 days

8. Excellent after sale service.

9. Delivery term:EXW,FOB,CIF,DDU,DDP

10. R&R study, 3rd  Party certification

11. shipping:By Ocean/by Air.


Sunyuu is making better checking fixture in terms of quality and maintainability. We have been

incorporating more standard checking fixture components into our checking fixture builds thus

reducing the variability associated with custom components. We use non-marking clamps so all

inspected parts can be returned to production. We rely on checking fixture base suppliers for

standard bases whenever possible. Our aluminum and steel fixture bases have a solid base plate and

fabricated supports. The single piece fabrication has a high structural rigidity at lower

weight.HINA. 523000


If you are going to check the quotation of checking fixture for ip assembly parts made in China from one of the famous checking fixture for ip assembly parts manufacturers and suppliers in China, It is always at your service.
